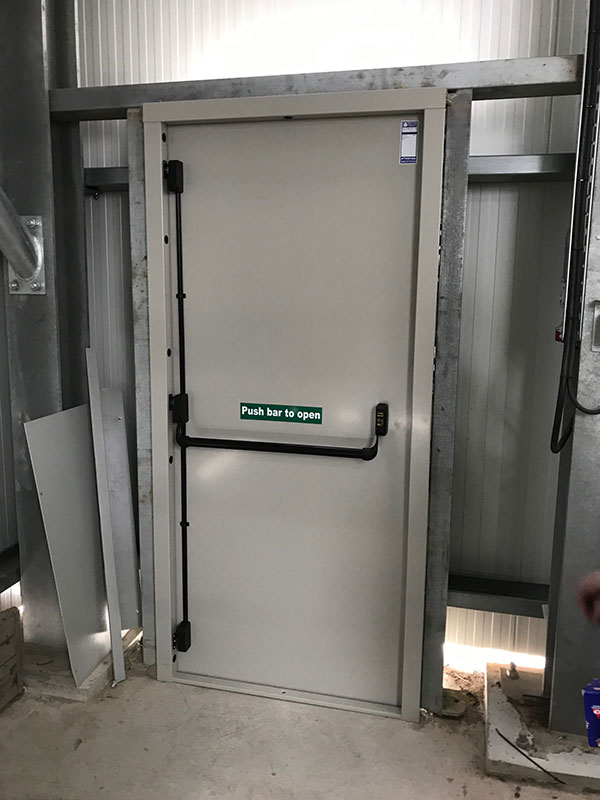

Overview
Importantly, because we can design internal and external fire doors for any size opening, we can help any commercial, industrial, or multi-occupancy residential building to meet fire safety compliance and fire exit regulations in the workplace.
Every fire escape door is custom made to suit existing structural openings. They are designed on a CAD/CAM system and manufactured with CNC punching and pressing facilities to guarantee quality and long product life, so you can depend on it to secure your premises as intended with one of our metal fire doors.
Product description
General purpose steel fire doors for standard security fire exit applications, custom made to suit existing structural openings, all doors are designed on a CAD / CAM system and manufactured with CNC punching and pressing facilities to guarantee quality and long product life.
Fire exit door frames
Manufactured from 1.5mm or 2.0mm Zintec steel, formed to create a single rebate profile frame (double rebate option available on request), reinforced and fitted with adjustable wind out fixing points, we also offer an expanding channel frame which can aid fitting into uneven openings.
Door leaves
Manufactured from 1.2mm, 1.5mm or 2.0mm Zintec steel, double skinned and tray formed to create a 45mm thick door leaves, Internally the door leaves are filled with a dufaylite / honeycomb core or an insulated mineral wool core. Door leaves are fitted with an external security anti jemmy lip to the lock side and integral security dog bolts to the hinged side.
Hardware
All of our steel fire exit doorsets come as standard with a single point panic bar, leaf & half / double doorsets also come with a 2 point panic bar to the passive leaf. Additional locks can also be added to single, leaf and half and double doors to increase security. Please note any type of lock can be fitted to this type of doorset.
Hinges
As standard doors are supplied with a minimum of 3 stainless steel ball bearing butt hinges, dependant on leaf size and weight, doorsets can also be fitted with a continuous butt hinge.
Cill
All doorsets come as standard with a DDA Compliant threshold, other threshold options are available including no threshold.
Vision and Louvered Panels
Our steel fire doors can be fitted with vision panels in a wide range of sizes and glazing options. They can also be fitted with louvered panels in a wide range of sizes with or without fly/insect mesh.
Side & over panels
Our steel fire exit doors can be supplied with side and/or over panels either solid, louvered or glazed.
Optional extras
Our steel fire exit doors can also be fitted with additional locking, door closers, limit stays, kick plates, rain deflectors, drop bars, spy holes, finger protection strips, and more items that are available on request.
All steel fire exit doors supplied with
- Frame weather seal
- Fixing cover caps
Finishes
Our fire escape doors can come in a bare metal finish, primer finish (requires on site painting) or polyester powder coat finish to a standard RAL / BS colour (standard stock colour chart available on request). We also offer a specialist wood grain finish and a coastal/marine grade finish.
Overall maximum fire exit door sizes
- Single Fire Exit Door: 1425mm Wide x 2945mm High
- Double Fire Exit Door: 2825mm Wide x 2945mm High
- For sizes larger than the above, side and over panels can be used to achieve the required structural opening size
Doors can be manufactured to suit any structural opening size please see Bespoke Doorsets for more information.
As standard single door frames come pre-assembled and double door frames come in knockdown form.
Steel fire exit door applications
Commercial areas
Leisure facilities
Schools and Universities
Retail outlets
Housing association communal areas
Offices
Resturants
Start designing the exact steel door you need
Covent Steel Doors can bespoke products to suit any structural opening size. We pride ourselves on our ability to deliver the exact made-to-measure products our clients are expecting. To discuss a custom steel door, get in touch with details of your requirements and we will aim to get back to you within one working day with a quote.
